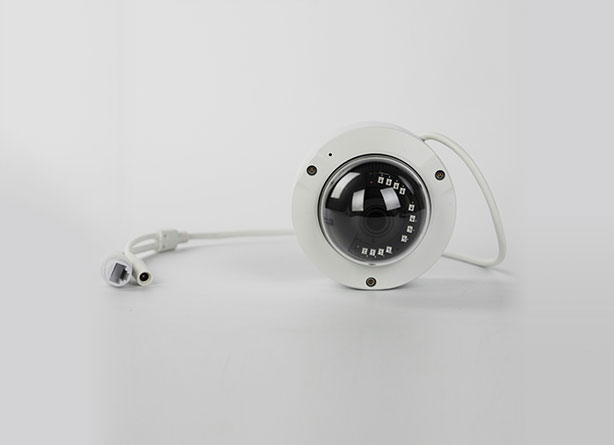

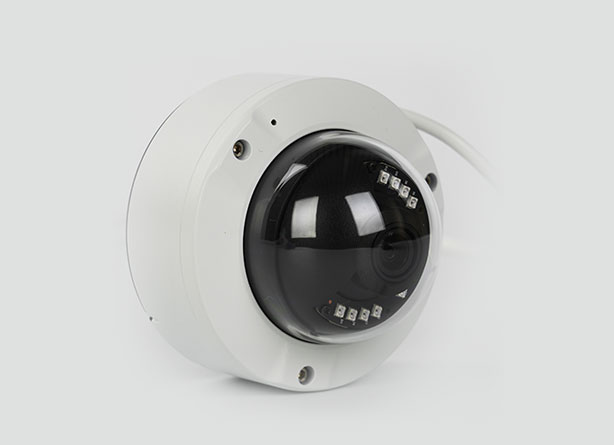

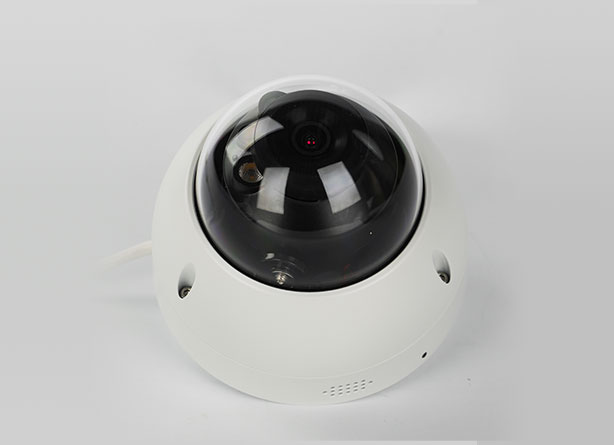

Model: IPC-DF2649S-S2
| Camera | |
| Image Sensor | 1/2.7” CMOS |
| Max. Resolution | 6MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006Lux(Illuminator off); 0Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR Light: 30 m, White Light: 30m |
| Illuminator Control | Auto; Manual |
| Lens | |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm/3.6mm |
| Max. Aperture | F1.6 |
| Iris Type | Auto |
| Intelligence | |
| Smart Motion Detection | Yes |
| Perimeter Protection | Intrusion, Tripwire (Support the classification of Vehicle, Human and Non-Motor) |
| AI Search | Work together with NVR |
| Video | |
| Compression | H.264H; H.264M; H.264B; H.265 |
| Video Frame Rate | Main Stream: 6MP (1 fps–25/30 fps) |
| Sub Stream: D1 (1 fps–25/30 fps) | |
| Third Stream: 720P (1 fps–25/30 fps) | |
| Stream Capability | 3 Streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–20480 Kbps |
| H.265: 3 Kbps–20480 Kbps | |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Yes |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Image Rotation | 180° |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in Mic | NA (optional) |
| Alarm | |
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | TCP/IP;UDP;HTTP;DHCP;DDNS;FTP;UPNP |
| Interoperability | ONVIF; CGI; P2P(Optional) |
| Storage | SD Card (Optional) |
| Browser | IE: IE8 and later |
| Management Software | PC Software(SVMS) |
| Mobile Client | IOS; Android |
| Power | |
| Power Supply | 12V DC (±30%)/PoE (802.3af) |
| Power Consumption | Max. 3W |
| Environment | |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Inner core: Metal; Cover: Plastic |
| Dimensions | Φ110mm×97mm |
| Net Weight | 430g |
