Model: IPC-BF2549D-ZAS-PV

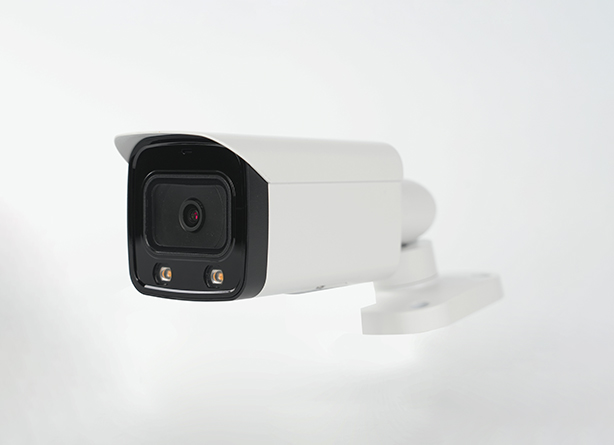

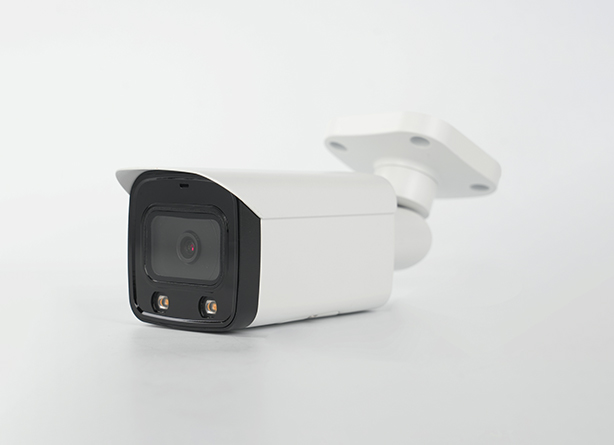

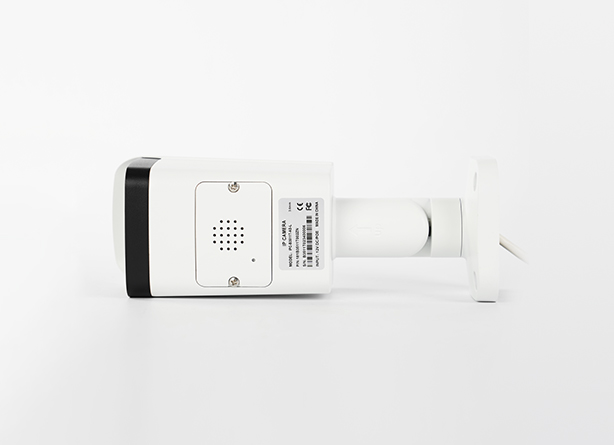

The IPC-BF2549D-ZAS combines motorized zoom flexibility with AI analytics and hybrid night vision, ideal for dynamic surveillance scenarios. Its rugged design and smart features make it a versatile solution for scalable security deployments.
| Camera | |
| Image Sensor | 1/2.7” CMOS |
| Max. Resolution | 5MP, 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006Lux(Illuminator off); 0Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR distance 40m, Warm light distance 40m, Red and Blue Alarm light |
| Illuminator Control | Auto; Manual |
| Lens | |
| Lens Type | Motorized Vari-Focal |
| Focal Length | 2.7 mm–13.5mm |
| Max. Aperture | F1.6 |
| Field of View |
Horizontal: 99°–28° Vertical: 71°–21° Diagonal: 134°–35° |
| Iris Type | Auto |
| Intelligence | |
| Smart Motion Detection | Yes |
| Perimeter Protection | Intrusion, Tripwire (Support the classification of Vehicle, Human and Non-Motor) |
| Face Detection | NA |
| Object Detection | NA |
| People Counting | NA |
| Heat Map | NA |
| AI Search | Work together with NVR |
| Video | |
| Compression | H.264H; H.264M; H.264B; H.265 |
| Smart Compression | H.264H+; H.264M+; H.264B+; H.265+ |
| Video Frame Rate | Main Stream: 5MP (1 fps–25/30 fps) |
| Sub Stream: D1 (1 fps–25/30 fps) | |
| Third Stream: 720P (1 fps–25/30 fps) | |
| Stream Capability | 3 Streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–20480 Kbps |
| H.265: 3 Kbps–20480 Kbps | |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Yes |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Image Rotation | 180° |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Alarm | |
| Arming/Disarming | Yes |
| Sound Alarm | Optional |
| Light Alarm | Yes |
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
| Interoperability | ONVIF; CGI; P2P(Optional) |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; Micro SD card (support max. 256 G/FAT32) |
| Browser | IE: IE8 and later; Chrome; Firefox |
| Management Software | PC Software(SVMS) |
| Mobile Client | IOS; Android |
| Port | |
| Audio Input | NA |
| Audio Output | NA |
| Alarm Input | NA |
| Alarm Output | NA |
| Power | |
| Power Supply | 12V DC (±30%)/PoE (802.3af) |
| Power Consumption | Basic: 2.8 W; Max. 6.5W |
| Environment | |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 238 mm × 79mm × 74mm |
| Net Weight | 790g |
1.All-in-One Deterrence System :
1. Why Choose Us?
Fast Delivery:The company is equipped with a small amount of inventory, if the inventory is sold out, the order will be shipped within 3 weeks
Customization: Logo printing, feature expansion (e.g., 4G module)
Localized Support: Hangzhou warehouse direct shipping
2.Certifications & After-Sales
Quality Assurance: CE/FCC/RoHS certified
After-Sales Promise: 3-year warranty + free technical support
Documentation: SDK/API development kits available (contact support)
