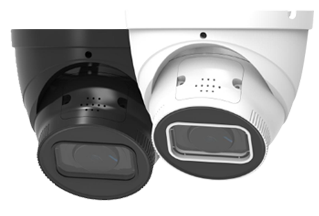

Model: IPC-EF3541M-ZAS
The IPC-EF3541M-ZAS is a versatile professional security camera that combines 5MP HD resolution, a 5x motorized zoom lens, 40m IR night vision, 120dB WDR, and a suite of advanced AI analytics (Perimeter Protection, Face Detection, Human/Vehicle Classification, People Counting, etc.). Its rugged IP67 housing, wide temperature tolerance, and PoE support make it an ideal choice for demanding indoor and outdoor security applications
| Camera | |
| Image Sensor | 1/2.7” CMOS |
| Max. Resolution | 5MP, 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.002Lux(Color); 0.0002Lux (B/W); 0Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR Distance 40 m |
| Illuminator Control | Auto; Manual |
| Lens | |
| Lens Type | Motorized Vari-Focal |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6 |
| Field of View |
Horizontal: 99°–28° Vertical: 71°–21° Diagonal: 134°–35° |
| Iris Type | Auto |
| Intelligence | |
| Smart Motion Detection | Yes |
| Perimeter Protection | Intrusion, Tripwire (Support the classification of Vehicle, Human and Non-Motor) |
| Face Detection | Yes |
| People Counting | Yes |
| Heat Map | Yes |
| Video Metadata | NA |
| AI Search | Work together with NVR |
| Video | |
| Compression | H.264H; H.264M; H.264B; H.265 |
| Smart Compression | H.264H+; H.264M+; H.264B+; H.265+ |
| Video Frame Rate | Main Stream: 5MP (1 fps–25/30 fps) |
| Sub Stream: D1 (1 fps–25/30 fps) | |
| Third Stream: 720P (1 fps–25/30 fps) | |
| Stream Capability | 3 Streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–20480 Kbps |
| H.265: 3 Kbps–20480 Kbps | |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Yes |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Image Rotation | 180° |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Two-way talk | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; G.726ASF |
| Alarm | |
| Arming/Disarming | NA |
| Sound Alarm | Yes |
| Light Alarm | NA |
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
| Interoperability | ONVIF; CGI; P2P |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; Micro SD card (support max. 256 G/FAT32) |
| Browser | IE: IE8 and later; Chrome; Firefox |
| Management Software | PC Software(SVMS), APP |
| Mobile Client | IOS; Android |
| Port | |
| Audio Input | NA(1 channel optional) |
| Audio Output | NA(1 channel optional) |
| Alarm Input | NA(1 channel optional) |
| Alarm Output | NA(1 channel optional) |
| Power | |
| Power Supply | 12V DC (±30%)/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W; Max: 6.2W |
| Environment | |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 110 mm × Φ122 mm |
| Net Weight | 670g |
1. Image & Video Quality
High-Definition Imaging: Utilizes a 1/2.7-inch 5MP CMOS sensor with a maximum resolution of 2880×1620 (16:9 widescreen format), delivering clear and detailed images.
Premium Lens: Features a 5x motorized vari-focal lens with a focal length range of 2.7mm to 13.5mm. This allows users to remotely adjust the field of view (from a wide 99° to a telephoto 28°) without manual on-site adjustment, greatly simplifying installation and fine-tuning.
Superior Night Vision: Supports infrared night vision with a maximum illumination distance of 40 meters, and can capture video in complete darkness (0 Lux) with IR illuminators on.
Professional Image Processing:
120dB True Wide Dynamic Range (WDR): Captures detail in both bright and dark areas of high-contrast scenes (e.g., strong backlight).
Backlight Compensation (BLC) and Highlight Compensation (HLC): Optimize backlit subjects and suppress glare from overpowering light sources (e.g., car headlights), respectively.
3D Digital Noise Reduction (3D NR): Effectively reduces image noise in low-light conditions, resulting in cleaner nighttime video.
Image Rotation (180°) and Mirroring: Supports flipping the image for versatile mounting angles.
2. AI & Analytics Capabilities
This is the camera's core strength, featuring advanced Video Content Analytics (VCA):
Perimeter Protection: Supports Tripwire and Intrusion detection with smart target classification (Vehicle, Human, Non-Motor vehicle), significantly reducing false alarms.
Face Detection: Can detect and capture human faces within the video stream.
People Counting: Analyzes foot traffic for business intelligence in commercial spaces.
Heat Map: Visualizes crowd density and movement patterns within defined areas for spatial analytics.
Smart Motion Detection (SMD): More advanced than basic motion detection, effectively filters out false alarms caused by foliage movement, lighting changes, etc.
AI Search: Works with compatible NVRs (Network Video Recorders) to enable fast video retrieval based on intelligent metadata (e.g., "person in red," "vehicle").
3. Audio & Alarms
Built-in Audio: Integrated microphone and speaker support two-way audio, enabling both listening to ambient sound and remote broadcasting.
Multiple Alarm Triggers: Supports alarms for events like network disconnection, IP conflict, and SD card issues (missing card, capacity warning, card error).
Alarm Linkage: Can trigger sound warnings (via built-in speaker) or other actions when an alarm is triggered.
4. Video Compression & Network
Efficient Compression: Supports advanced H.265+/H.264+ smart codecs, significantly saving bandwidth and storage space while maintaining high video quality.
Triple Streaming: Simultaneously outputs three independent video streams (Main, Sub, Third) for high-quality recording, low-bandwidth remote viewing, and another monitoring or storage purpose, offering flexibility for different bandwidth and device needs.
Network Protocols: Supports a wide range of protocols (ONVIF, RTSP, TCP/IP, etc.) for compatibility with mainstream NVRs and software platforms. Also supports P2P (Plug-and-Play) for easy remote setup via mobile app by scanning a QR code.
5. Storage & Power
Flexible Storage: Supports local storage via a microSD card (max. 256GB) and network storage via FTP.
Dual Power Options: Supports traditional 12V DC power and Power over Ethernet (PoE, 802.3af), allowing data and power transmission over a single network cable for simplified installation.
6. Physical Build & Environment
Robust Construction: Full metal casing with an IP67 protection rating against dust and water ingress, suitable for harsh outdoor conditions.
Wide Operating Temperature: Functions in an extremely wide range from -30°C to +60°C, making it suitable for various climates from extreme cold to heat.
Dimensions & Weight: Compact and sturdy design, measuring 110mm (H) x Φ122mm (D), with a net weight of 670g.
1. Scenarios Requiring Flexible视角 and Detail Capture
(Core Advantage: 5x Motorized Zoom)
Entrance/Exit & Perimeter Monitoring:
Scenarios:Residential compound gates, factory/campus main entrances, parking lot entrances/exits, school perimeters, villa walls.
Application: During initial installation or daily maintenance, the focal length can be adjusted remotely to easily switch between a "wide-angle view" (monitoring the overall situation) and a "detailed view" (zooming in on license plates, faces, or object details). Eliminates the need for manual lens adjustment via ladders, significantly saving labor costs.
Large Open Areas & Plazas:
Scenarios: Railway station squares, public plazas, parks, large warehouse interiors, logistics sorting centers.
Application: Use the wide-angle end (2.7mm) to monitor the macro flow of people/vehicles across the entire area. Upon detecting anomalies (e.g., gatherings, intrusions), the zoom function (13.5mm) can be used to get a close-up, clear view of the event details, enabling seamless "overview + detail" monitoring.
Retail & Business Intelligence Analytics:
Scenarios: Shopping mall atriums, supermarket checkout areas, brand flagship stores, bank lobbies.
Application: The wide-angle end is used for overall passenger flow counting and heat map analysis. The zoom function can target specific shelves, display cases, or checkout counters for close-up monitoring, analyzing customer picking behavior, dwell time, and expressions to provide data support for refined operations.
2. Professional Security & Incident Management
(Core Advantage: AI Human/Vehicle Classification, Perimeter Protection)
Critical Infrastructure Protection:
Scenarios: Substations, communication base stations, energy plants, reservoir dams, airport perimeters.
Application: Set up virtual perimeters (tripwire, intrusion zones) and enable human/vehicle classification. Effectively distinguishes between staff on normal patrols and unauthorized personnel/vehicle intrusions, greatly reducing false alarms caused by animals or foliage movement, and improving security efficiency.
Traffic & Road Monitoring:
Scenarios: Urban roads, highways, intersections, bridges, tunnels.
Application: Flexibly adjust the monitoring range using the zoom function. AI features can be used to detect incidents like illegal parking, wrong-way driving, and pedestrians on highways, and can perform preliminary classification of vehicle types (cars, non-motor vehicles).
Construction Sites & Areas:
Scenarios: Construction sites, material yards, work zones.
Application: Set up virtual electronic fences for nights or unmanned weekends. Immediate alarms and security notifications are triggered upon unauthorized human or vehicle intrusion. Wide Dynamic Range (WDR) effectively handles harsh lighting (welding) and shadow conditions common on sites.
3. Professional Monitoring in Complex Lighting & Environments
(Core Advantage: 120dB WDR, IP67, Wide Temperature Range)
Backlit Environments:
Scenarios: Underground garage entrances/exits, building lobby entrances, backlit windows.
Application: The powerful 120dB Wide Dynamic Range (WDR) ensures details both inside (darker) and outside (very bright) are clearly visible, capturing clear images of faces and vehicles even in strong backlighting.
Harsh Outdoor Environments:
Scenarios: Areas with heavy rain/snow, sandy/dusty areas, sun-exposed locations, cold regions.
Application: The IP67 rating ensures complete protection against dust ingress and can withstand water jets. The -30°C to +60°C operating temperature range guarantees stable operation without dropping out in extreme cold or heat.
