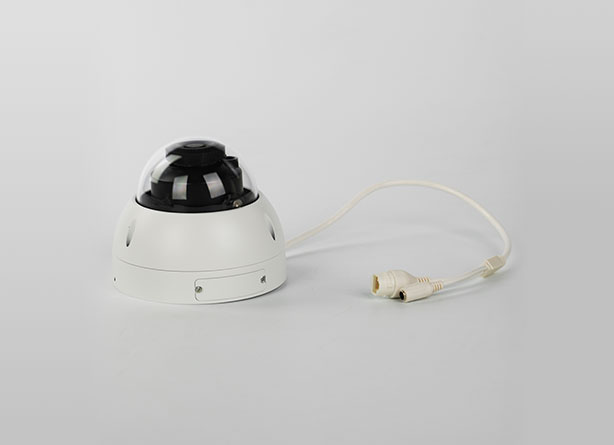

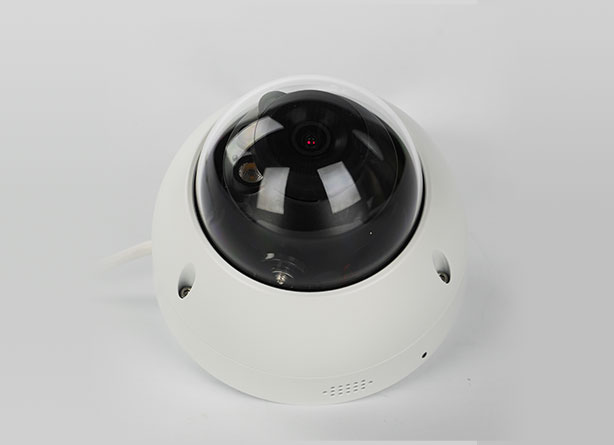

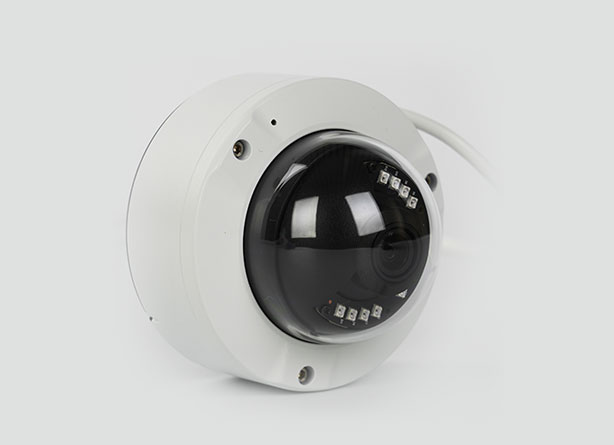

Model: IPC-DF5419C-AS
The IPC-DF5419C-AS is a professional-grade 4MP active deterrence fixed-focal network camera designed for high-performance outdoor security surveillance.
| Camera | |
| Image Sensor | 1/1.8” CMOS |
| Max. Resolution | 4MP, 2688 (H) × 1520 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0006 lux@F1.6(F1.0 optional) (Color, 30 IRE),0.0004 lux@F1.6(F1.0 optional) (B/W, 30 IRE),0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR distance 40m, Warm light distance 40m |
| Illuminator Control | Auto; Manual |
| Lens | |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm/3.6mm/6.0mm |
| Max. Aperture | F1.6(F1.0 optional) |
| Intelligence | |
| Smart Motion Detection | Yes |
| Perimeter Protection | Intrusion, Tripwire; Loitering Detection; People Gathering; Parking Detection |
| Face Detection | Face detection; Track; Snapshot; Snapshot Optimization; |
| Parking Space Detection | Yes |
| Object Detection | Abandoned Object; Missing Object |
| People Counting | People Counting in area, exporting report (day/week/month) |
| Video Metadata |
Motor Vehicle, Non-motor vehicle, Face, Human Body Detection; Info Collecting Motor Vehicle Attributes; Non-motor Vehicle Attributes; Human Body Attributes; Face Attributes; |
| Heat Map | Support |
| AI Search | Work together with NVR |
| Video | |
| Compression | H.264H; H.264M; H.264B; H.265 MJPEG (Customization) |
| Smart Compression | H.264H+; H.264M+; H.264B+; H.265+ |
| Video Frame Rate |
Main stream:4MP@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080P(1–25/30 fps) |
| Stream Capability | 3 Streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H.264: up to 16384 kbps H.265: up to 16384 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| White Balance | Yes |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Image Rotation | 180° |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Two-way talk | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; G.726ASF |
| Alarm | |
| Arming/Disarming | Yes |
| Sound Alarm | Yes |
| Light Alarm | Yes |
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
| Interoperability | ONVIF; CGI; P2P |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; Micro SD card (support max. 256 G/FAT32) |
| Browser | IE: IE8 and later; Chrome; Firefox |
| Management Software | PC Software(SVMS), APP |
| Mobile Client | IOS; Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel |
| Alarm Output | 1 channel |
| Power | |
| Power Supply | 12V DC (±30%)/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W; Max: 5.2W |
| Environment | |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67, IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 102 mm × Φ122 mm |
| Net Weight | 490g |
This datasheet is subject to change without prior notice. Please contact us to get the latest datasheet.
1. Core Positioning & Nomenclature Analysis
4MP Ultra AI: Indicates a 4-megapixel ultra-high-definition intelligent camera with powerful AI processing capabilities.
Smart Hybrid Light: Intelligent hybrid light technology. Combines IR light and warm light to enable full-color night vision and active deterrence.
Active Deterrence: Deters intruders through white light alarms and sound alarms, going beyond mere recording.
Dark Killer: Emphasizes its superior low-light performance, delivering clear images in extremely dark environments.
Fixed-Focal IPC: Fixed-focal network camera, with optional focal lengths of 2.8mm, 3.6mm, and 6mm.
2. Imaging Performance
Sensor: 1/1.8-inch large-format CMOS sensor. A larger sensor size signifies better light sensitivity, which is the foundation of excellent low-light performance.
Resolution: 4MP (2688x1520), providing ultra-HD image quality.
Low-Light Performance: Exceptionally outstanding.
Color Mode: Minimum illumination 0.0006 lux (@F1.6 aperture).
B/W Mode: Minimum illumination 0.0004 lux (@F1.6 aperture).
With Illuminator On: Can achieve imaging in 0 lux conditions.
Illumination & Night Vision:
IR Distance: 40 meters.
Warm Light Distance: 40 meters. Warm light provides full-color images at night and can also serve as a deterrence method.
Image Technology: Supports 140dB True Wide Dynamic Range (WDR) (for challenging backlight scenarios), Backlight Compensation (BLC), Highlight Compensation (HLC), and 3D Digital Noise Reduction (3D NR), ensuring clear images in various complex lighting conditions.
3. Smart AI Functions (Core Selling Point)
This is a true AI camera, supporting a wide range of intelligent detection and analysis functions:
Perimeter Protection: Supports Intrusion, Tripwire, Loitering Detection, People Gathering, Parking Detection.
Face Detection: Supports detection, tracking, snapshot, and snapshot optimization.
Smart Object Detection (SMD-EM): Supports Abandoned Object and Missing Object detection.
People Counting: Supports counting people in a defined area and can generate daily/weekly/monthly reports.
Video Metadata: Can recognize and extract rich attribute information, including:
Motor Vehicles: Model, color, license plate, etc.
Non-Motor Vehicles: Model, color, etc.
Human Body: Gender, age group, clothing color, backpack, etc.
Face: Gender, age group, glasses, etc.
Other Smart Functions: Heat Map,AI Search functionality in conjunction with an NVR.
4. Active Deterrence Function
Methods: Supports white light flashing alarms and sound alarms (played through the built-in speaker).
Trigger: Can be linked to smart events(e.g., intrusion) for activation, enabling proactive deterrence. Also supports manual Arming/Disarming.
5. Audio & Alarm
Built-in Microphone and Speaker, supporting Two-Way Audio.
Alarm Interface: Provides 1 channel alarm input and 1 channel alarm output for connecting external sensors (e.g., door contact) and actuators (e.g., warning light).
System Alarms: Supports alerts for events like Disconnection, IP Conflict, No SD Card, Capacity Warning, SD Card Error.
6. Video & Encoding
Compression: Supports advanced H.265+/H.264+ smart encoding, significantly saving storage space and bandwidth while maintaining image quality. Also supports standard H.265/H.264 and MJPEG.
Multi-Streaming: Supports Triple Streaming technology (Main, Sub, Third Stream), simultaneously meeting different needs for HD storage, mobile preview, and third-party platform integration.
Main Stream: 4MP@25/30fps, ensuring full HD real-time monitoring.
7. Network & Storage
Network Interface: RJ-45 (10/100M Ethernet port), supports PoE (802.3af) or 12V DC power supply.
Storage Solutions:
Local: Supports Micro SD card storage (max. 256GB).
Network: Supports FTP server storage.
Protocol & Compatibility: Supports standard protocols like ONVIF, CGI, ensuring good third-party platform compatibility. Supports P2P for easy remote addition via mobile app QR code.
8. Physical Characteristics & Environmental Adaptability
Protection Rating: IP67 (dustproof and waterproof) and IK10(vandal-resistant), resistant to harsh outdoor environments and physical impact.
Operating Temperature:-30°C ~ +60°C, wide-temperature design suitable for extremely cold and hot regions.
Material & Dimensions: Metal casing, dimensions: 102mm(H) x Φ122mm(D), net weight: 490g.
Power & Consumption: Very low power consumption, max. only 5.2W, easily powered by PoE.
9. Software & Access
Management: Supports web browsers (IE, Chrome, Firefox), PC client software (SVMS), and mobile apps (iOS/Android).
User Access: Supports up to 20 concurrent users with a total bandwidth of 80Mbps.
1. Critical Infrastructure Protection
Energy Facilities: Power substations, oil & gas pipelines, wind/solar farms.
Why: AI perimeter protection detects intrusions in remote areas; deterrence alarms scare off trespassers; rugged design withstands harsh environments.
Data Centers & Communication Hubs:
Why: Metadata extraction logs vehicle/human activity; tamper-resistant IK10 housing prevents physical attacks.
2. Retail & Commercial Security
Parking Lots & Garages:
Why: Vehicle metadata (license plate, color) aids in theft investigations; warm light ensures full-color night vision; people counting optimizes traffic flow.
Warehouses & Logistics Centers:
Why: Intrusion detection triggers alarms for unauthorized access; abandoned/missing object detection prevents theft.
Storefronts & Shopping Malls:
Why: People counting generates business reports; loitering detection alerts staff to suspicious behavior.
3. High-Security Residential Areas
Gated Communities & Luxury Homes:
Why: Active deterrence (light/siren) scares intruders before breaches; facial snapshots provide evidence; two-way audio allows remote warning.
Construction Sites:
Why: Vandal-resistant IK10 rating withstands attacks; AI detects after-hours intrusions; low-light performance monitors pitch-dark areas.
4. Public Spaces & Institutional Use
Schools & Universities:
Why: Perimeter protection restricts unauthorized entry; people gathering detection alerts to fights or crowds.
Public Parks & Transportation Hubs:
Why: Abandoned object detection identifies suspicious packages; heat maps analyze crowd density.
Government Facilities:
Why: ONVIF compliance integrates with existing systems; video metadata supports forensic searches.
5. Industrial & Remote Sites
Factories & Manufacturing Plants:
Why: Operates in extreme temperatures (-30°C to +60°C); PoE support simplifies wiring in large facilities.
Agricultural & Remote Monitoring:
Why: IR/warm light covers 40m ranges; SD card storage works without network infrastructure.
Conclusion
The IPC-DF5419C-AS is engineered for high-risk, high-value, or remote environments where traditional cameras only "record" incidents. Its AI-driven deterrence and forensic capabilities make it ideal for:
Preventing crimes (e.g., scaring off intruders).
Enhancing operational efficiency (e.g., people counting, parking management).
Ensuring reliability in extreme conditions (weather, vandalism, temperature).
For customized deployment advice, consult security integrators or the manufacturer.
